Features ·Low Insertion Loss ·Compact Size ·High Isolation And Crosstalk ·Low Polarization Dependent Loss (PDL) ·Telcordia GR-1209 And GR-1221 Qualified, Providing Excellent Environmental And Mechanical Stability
|
Application ·WDM Transmission ·Metropolitan Area Network ·Optical Signal Processing ·Optical Add/Drop Multiplexing |
Specifications
| Parameter | Unit | Values | |
| Environmental | |||
| Operating Temperature (A Grade) | °C | -5~ +65 | |
| Operating Temperature (P Grade) | -40 ~ +85 | ||
| Storage Temperature | -40 ~ +85 | ||
| Optical | |||
| Pass Band Type | / | Flat-Top | Gaussian |
| Operating Band | / | C-Band | |
| Channel Count | CH | 16ch~48ch | |
| Channel Spacing | GHz | 100 | |
| Centre Wavelength | nm | ITU Grid | |
| Clear Passband | GHz | ±12.5 | |
| Wavelength Accuracy | pm | ±50 | |
| -1dB Bandwidth | nm | ≥0.4 | ≥0.2 |
| -3dB Bandwidth | nm | ≥0.6 | ≥0.4 |
| Insertion Loss | dB | ≤5.5 | ≤4.0 |
| Insertion Loss Uniformity | dB | ≤1.5 | ≤1.5 |
| Channel Ripple | dB | ≤0.7 | ≤1.2 |
| Adjacent Channel Isolation | dB | ≥23 | ≥23 |
| Non-Adjacent Channel Isolation | dB | ≥30 | ≥30 |
| Total Channel Isolation | dB | ≥21 | ≥21 |
| Polarization Dependent Loss | dB | ≤0.5 | |
| Polarization Mode Dispersion | Ps | ≤0.5 | |
| Chromatic Dispersion | ps/nm | ±20 | |
| Return Loss | dB | ≥40 | |
| Power Handling | mW | ≤300 | |
Remark:
1.The reliability test conformed Telcordia GR-1221-CORE&GR-1209-CORE.
2.The specification does not include the connector. The insertion loss of the connector increases by 0.3dB and the Return Loss decreases by 5dB.

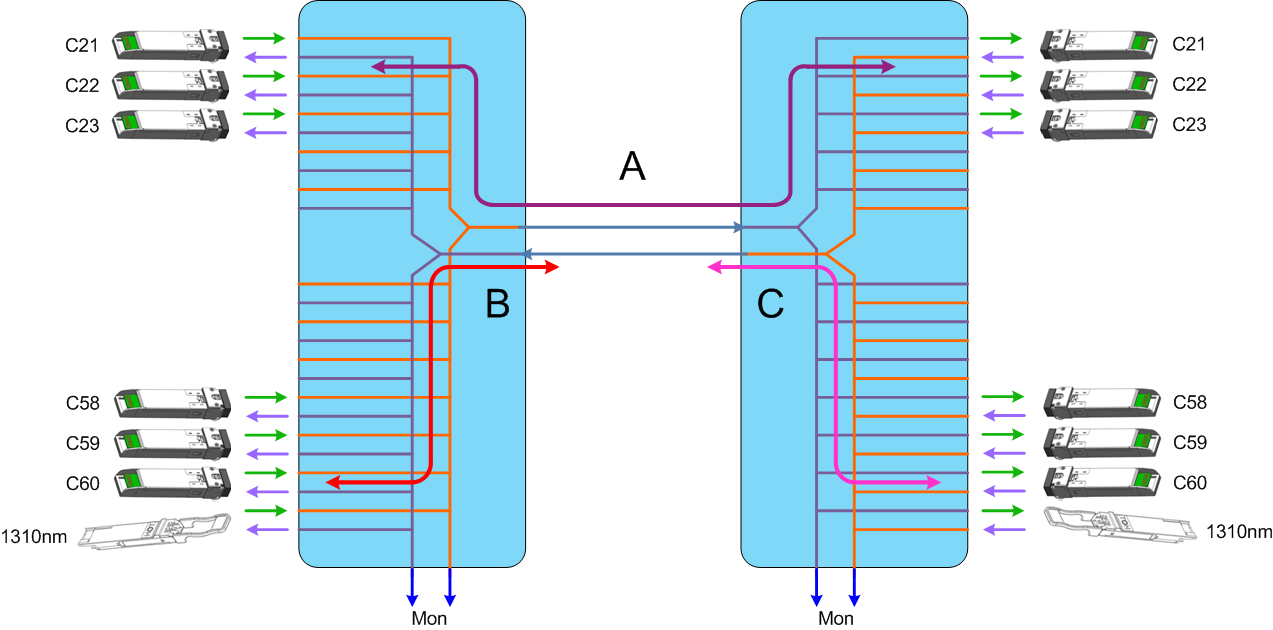

Transmission

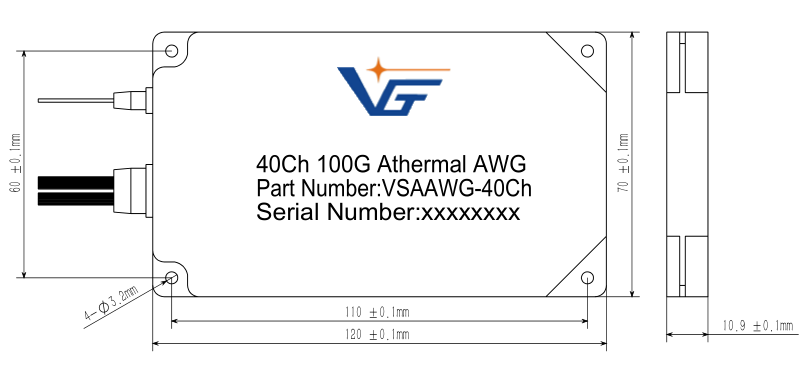

Package Option
|

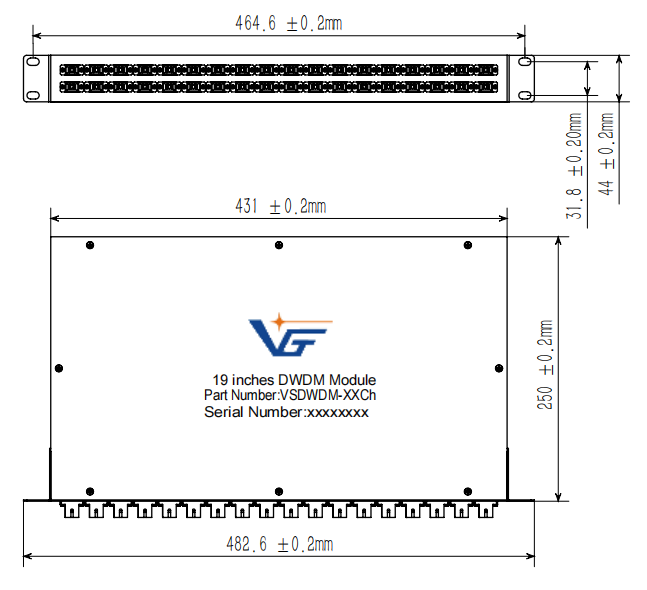

AWG Module |
19 Inches Rack Mount |
