CWDM模塊
所屬分類
超緊湊型 WDM
零售價
0.0
元
市場價
0.0
元
瀏覽量:
1000
產品編號
數量
-
+
庫存:
0
產品描述
參數
|
特性 ·寬的工作波長范圍 ·低插入損耗和低PDL ·符合TelcordiaGR-1209和GR-1221 ·有良好的機械穩定性
|

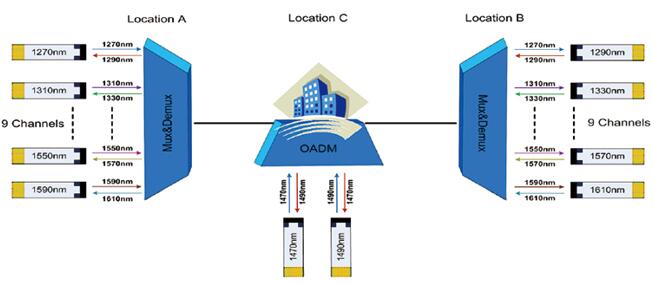

應用 ·波長轉換 ·城域網 ·網絡擴展升級
|
產品概述
威晟光通的系列多通道濾波片用于上傳/下載幾組CWDM波長，其中波長為1271,1291......1611 nm在CWDM的ITU網格(20 nm間距)，其中常見的通道數量為4CH, 8CH,18CH。這一系列的濾波器通常用于模塊或機箱封裝。該系列所有規格的產品都是為戶外使用而設計的，溫度范圍為40℃到+85℃。
規格
| 參數 | 單位 | 規格 | |||
| 環境 | |||||
| 工業級工作溫度 | °C | -40~ +85 | |||
| 儲存溫度 | °C | -40 ~ +85 | |||
| 光學 | |||||
| 通道數 | CH | 4 | 8 | 18 | |
| 工作波長 | nm | 1260~1620 | |||
| 通道間距 | nm | 20 | |||
| 中心波長 | nm | 1270~1610 或 1271~1611 | |||
| 通道帶寬 | nm | λc±6.5 | |||
| 插入損耗 | dB | ≤1.4 | ≤2.6 | ≤3.7 | |
| 通道平坦度 | dB | ≤0.3 | |||
| 相鄰通道隔離度 | dB | ≥30 | |||
| 非相鄰通道隔離度 | dB | ≥40 | |||
| 升級端隔離度 | dB | ≥15 | |||
| 插入損耗熱穩定性 | dB/℃ | <0.005 | |||
| 波長熱穩定性 | nm/℃ | <0.002 | |||
| 方向性 | dB | ≥50 | |||
| 回波損耗 | dB | ≥50 | |||
| 偏振相關損耗 | dB | ≤0.2 | |||
| 偏振模色散 | Ps | ≤0.1 | |||
| 可耐功率 | mW | ≤500 | |||
備注:
1、可靠性測試符合TelcordiaGR-1221-CORE&GR-1209-CORE的標準。
2、該規格不包括連接頭。增加連接頭的插入損耗增加0.3dB，回路損耗減少5dB。
封裝方式
傳出
訂購信息
| CWDMM | 類型 | 通道數 | 初始通道 | 特殊端 | 尾纖類型 | 封裝類型 | 光纖長度 | 連接頭類型 |
| A=Single Fiber | 01=1CH | 270=1270nm | M=MON | 0=250um bare fiber | 1=L60xW60xH10 | 1=0.5m | OO=None | |
| B=Dual Fiber | 02=2CH | 271=1271nm | 3=1310 | 1=0.9mm loose tube | 2=L100xW80xH10 | 2=1.0m | FU=FC/PC | |
| O=OADM | 03=3CH | 290=1290nm | E=EXP | 2=2.0mm loose tube | 3=L120xW80xH18 | 3=1.5m | FA=FC/APC | |
| X=Customized | 04=4CH | 291=1291nm | X=Customized | 3=3.0mm loose tube | 4=L140xW115xH18 | 4=2.0m | SU=SC/PC | |
| ...... | ...... | X=Customized | 5=L100xW85xH12 | 5=2.5m | SA=SC/APC | |||
| 99=99CH | 590=1590nm | 6=1U 19inch case | 6=3.0m | LU=LC/PC | ||||
| XX=Customized | 591=1591nm | 7=2U 19 inch case | X=Customized | LA=LC/APC | ||||
| 610=1610nm | 8=LGX | ST=ST/UPC | ||||||
| 611=1611nm | 9=Plugged Box | XX=Customized | ||||||
| XXX=Customized | X=Customized |
