CEx WDM(PON WDM)
所屬分類
超緊湊型 WDM
零售價
0.0
元
市場價
0.0
元
瀏覽量:
1000
產品編號
數量
-
+
庫存:
0
產品描述
參數
|
特性 ·緊湊的尺寸 ·獨立的波長和獨立的方向 ·符合TelcordiaGR-1209和GR-1221 |
應用 ·FTTx ·電信 ·GPON-XGPON , NG-PON,OTDR
|
產品概述
設計的波分復用模塊或共存元件，使千兆無源光網絡(GPON)演進為XGS- PON和NG-PON2。為已經使用的GPON保證了服務，但需要部署不同的FTTH接入技術的場景設計，包括光時域反射計(OTDR)信號。
換句話說，CEx WDM的組成部分能夠在一個共同的接入網上匯聚多種業務。
規格
| 參數 | 單位 | 規格 | |||
| 環境 | |||||
| 工作溫度 | °C | -40 ~ +85 | |||
| 儲存溫度 | °C | -40 ~ +85 | |||
| 光學 | |||||
| GPON | nm | 1290-1330 &1480-1500 | |||
| NG-P0N | nm | 1524-1544 &1596-1603 | |||
| XGS-PON | nm | 1260-1280 & 1575-1580 | |||
| OTDR | nm | 1625-1675 | |||
| 光纖類型 | / | G657A1或客戶定制 | |||
| IL @ GPON | dB | ≤0.8 | |||
| IL @ XGS-PON | dB | ≤1.2 | |||
| IL @ NG-P0N | dB | ≤1.4 | |||
| IL @ OTDR | dB | ≤1.6 | |||
| 隔離度@NG-PON2&XGS-PON&OTDR&Video | dB | ≥30 | |||
| 隔離度@GPON&NG-PON2&OTDR&Video | dB | ≥30 | |||
| 隔離度@GPON&XGS-PON&OTDR&Video | dB | ≥30 | |||
| 隔離度@GPON&XGS-PON&NG-PON2&OTDR | dB | ≥30 | |||
| 隔離度@GPON&XGS-PON&NG-PON2&Video | dB | ≥15 | |||
| 偏振相關損耗 | dB | ≤0.15 | |||
| 回波損耗 | dB | ≥50 | |||
| 方向性 | dB | ≥50 | |||
| 可耐功率 | mW | ≤500 | |||
備注:
1、可靠性測試符合TelcordiaGR-1221-CORE&GR-1209-CORE的標準。
2、該規格不包括連接頭。增加連接頭的插入損耗增加0.3dB，回路損耗減少5dB。
套餐選項
訂購信息

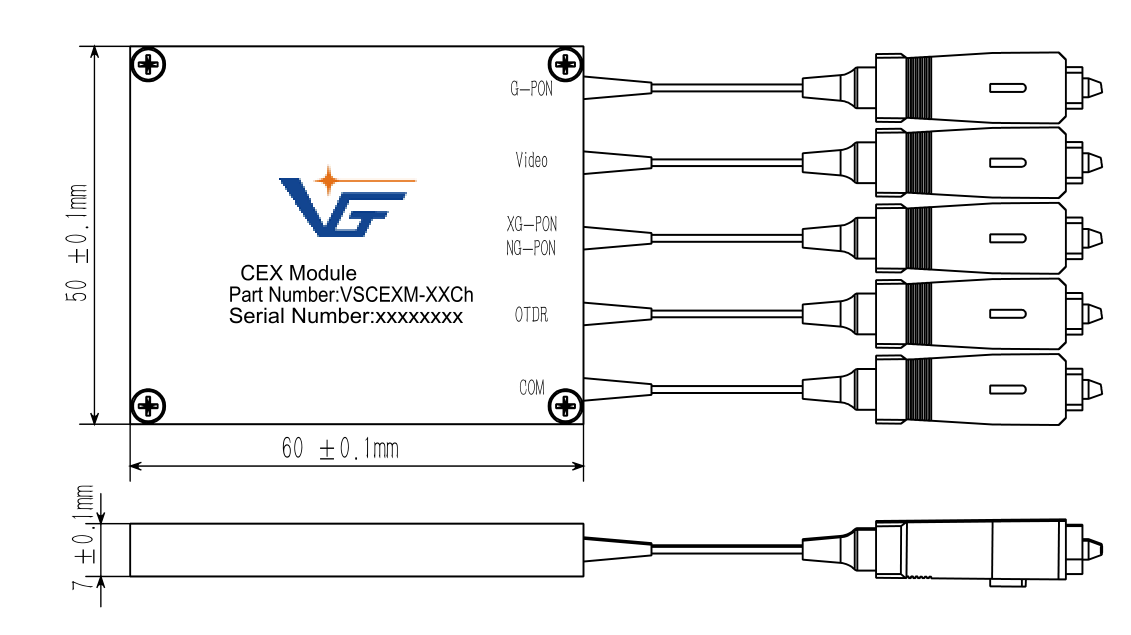

| CEx | 結構 | 尾纖類型 | 光纖長度 | 封裝長度 | 連接頭類型 |
| G=GPON | 0=Bare fiber | 1=0.5m | OO=None | 1=L100xW80xH10 | |
| N=NG-PON2 | 1=900um Loose tube | 2=1.0m | FA=FC/APC | 2=L120xW80xH18 | |
| X=XGS-PON | 2=2.0mm Cable | 3=1.5m | FU=FC/PC | 3=L140xW115xH18 | |
| O=OTDR | 3=3.0mm cable | 4=2.0m | SA=SC/APC | X=Customized | |
| V=Video | X=Customized | 5=2.5m | SU=SC/PC | ||
| X=Customized | 6=3.0m | X=Customized | |||
| X=Customized | |||||
