5G緊湊型CWDM解決方案
所屬分類
超緊湊型 WDM
零售價
0.0
元
市場價
0.0
元
瀏覽量:
1000
產品編號
數量
-
+
庫存:
0
產品描述
參數
|
特性 ·寬工作波長范圍 ·低插入損耗和低PDL ·符合TelcordiaGR-1209和GR-1221 ·良好的機械穩定性
|
應用 ·5G系統 ·城域網
|
產品概述
威晟光通的系列多通道復用器/解復用器用于上傳/下載幾組CWDM波長，其中波長為1271,1291......1611 nm在CWDM的ITU網格(20 nm間距)，其中常見的通道數量為4CH, 8CH,18CH。這一系列的復用器/解復用器通常用于插片盒式封裝。該系列所有規格的產品都是為戶外使用而設計的，溫度范圍為40℃到+85℃。.
規格
| 參數 | 單位 | 規格 | |||
| 環境 | |||||
| 工作溫度 | °C | -10~ +70 | |||
| 儲存溫度 | °C | -40 ~ +85 | |||
| 光學 | |||||
| 結構 | 6 | 12 | 18 | ||
| 通道波長 | nm | 1270~1610 或 1271~1611 | |||
| 通道間距 | nm | 20 | |||
| 通道帶寬（@-0.5dB帶寬） | nm | ±6.5 | |||
| 插入損耗 | dB | ≤1.2 | ≤1.8 | ≤2.5 | |
| 通道平坦度 | dB | <0.5 | |||
| 相鄰隔離度 | dB | >30 | |||
| 非相鄰隔離度 | dB | >40 | |||
| 偏振相關損耗 | dB | <0.2 | |||
| 偏振模色散 | Ps | <0.1 | |||
| 方向性 | dB | >50 | |||
| 回波損耗 | dB | >50 | |||
| 最大可耐功率 | mW | 500 | |||
備注:
1、可靠性測試符合TelcordiaGR-1221-CORE&GR-1209-CORE的標準。
2、該規格不包括連接頭。增加連接頭的插入損耗增加0.3dB，回路損耗減少5dB。
傳輸

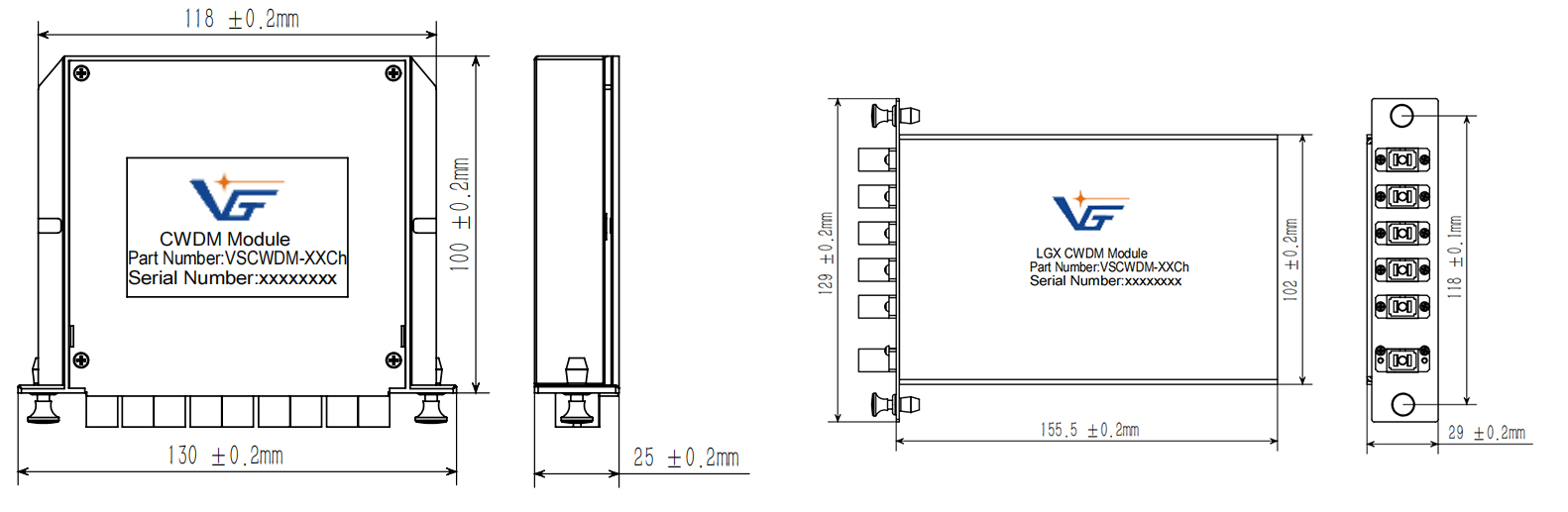

前面板
套餐選項
訂購信息
| CCWDMM | 類型 | 通道數 | 初始通道 | 特殊端 | 尾纖類型 | 封裝類型 | 光纖長度 | 連接頭類型 |
| A=Single Fiber | 02=2CH | 270=1270nm | M=MON | 1=250um bare fiber | 1=Plugged Box | 1=0.5m | OO=None | |
| B=Dual Fiber | 03=3CH | 271=1271nm | 3=1310 | 1=0.9mm loose tube | X=Customized | 2=1.0m | FU=FC/PC | |
| X=Customized | 04=4CH | 290=1290nm | E=EXP | 2=2.0mm loose tube | 3=1.5m | FA=FC/APC | ||
| 05=5CH | 291=1291nm | X=Customized | 3=3.0mm loose tube | 4=2.0m | SU=SC/PC | |||
| ...... | ...... | X=Customized | 5=2.5m | SA=SC/APC | ||||
| 18=18CH | 590=1590nm | 6=3.0m | LU=LC/PC | |||||
| XX=Customized | 591=1591nm | X=Customized | ST=ST/UPC | |||||
| 610=1610nm | XX=Customized | |||||||
| 611=1611nm | ||||||||
| XXX=Customized | ||||||||
