無熱 AWG 模塊
所屬分類
超緊湊型 WDM
零售價
0.0
元
市場價
0.0
元
瀏覽量:
1000
產品編號
數量
-
+
庫存:
0
產品描述
參數
|
特性 ·低插入損耗 ·緊湊的封裝尺寸 ·低色散 ·高隔離、高串擾 ·低偏振相關損耗(PDL) ·符合TelcordiaGR-1209和GR-1221 ·有極佳的機械穩定性
|
應用 ·波分復用系統 ·城域網 ·光信號處理 ·光分插復用
|
產品概述
威晟光通的AWG是一種基于平面波導技術的無源器件，不需要額外的電源或其他電源。它具有損耗低、集成度高、均勻性好等優點。有多種通道、封裝模式和擴展端，廣泛應用于MAN、骨干網絡、數據中心。該系列所有規格的產品都適用于-5℃至+65℃溫度范圍內的室外環境。
規格
| 參數 | 單位 | 規格 | |||
| 環境 | |||||
| 工作溫度 | °C | -5~ +65 | |||
| 工作溫度(P Grade) | -40 ~ +85 | ||||
| 儲存溫度 | °C | -40 ~ +85 | |||
| 光學 | |||||
| 透射通道類型 | / | Flat-Top | Gaussian | ||
| 工作波段 | / | C-Band | |||
| 通道數 | CH | 16ch~48ch | |||
| 通道間距 | GHz | 100 | |||
| 中心波長 | nm | ITU Grid | |||
| 清晰通道通頻帶 | GHz | ±12.5 | |||
| 波長精度 | pm | ±50 | |||
| -1dB信道帶寬 | nm | ≥0.4 | ≥0.2 | ||
| -3dB信道帶寬h | nm | ≥0.6 | ≥0.4 | ||
| 插入損耗 | dB | ≤5.5 | ≤4.0 | ||
| 插入損耗一致性 | dB | ≤1.5 | ≤1.5 | ||
| 通道平坦度 | dB | ≤0.7 | ≤1.2 | ||
| 相鄰通道隔離度 | dB | ≥23 | ≥23 | ||
| 非相鄰通道隔離度 | dB | ≥30 | ≥30 | ||
| 總隔離度 | dB | ≥21 | ≥21 | ||
| 偏振相關損耗 | dB | ≤0.5 | |||
| 偏振模色散 | ps | ≤0.5 | |||
| 色散 | ps/nm | ±20 | |||
| 回波損耗 | dB | ≥40 | |||
| 可耐功率 | mW | ≤300 | |||
備注：
1.可靠性測試符合TelcordiaGR-1221-CORE&GR-1209-CORE的標準。
2.該規格不包括連接頭，增加連接頭的插入損耗增加0.3dB，回路損耗減少5dB。
傳輸

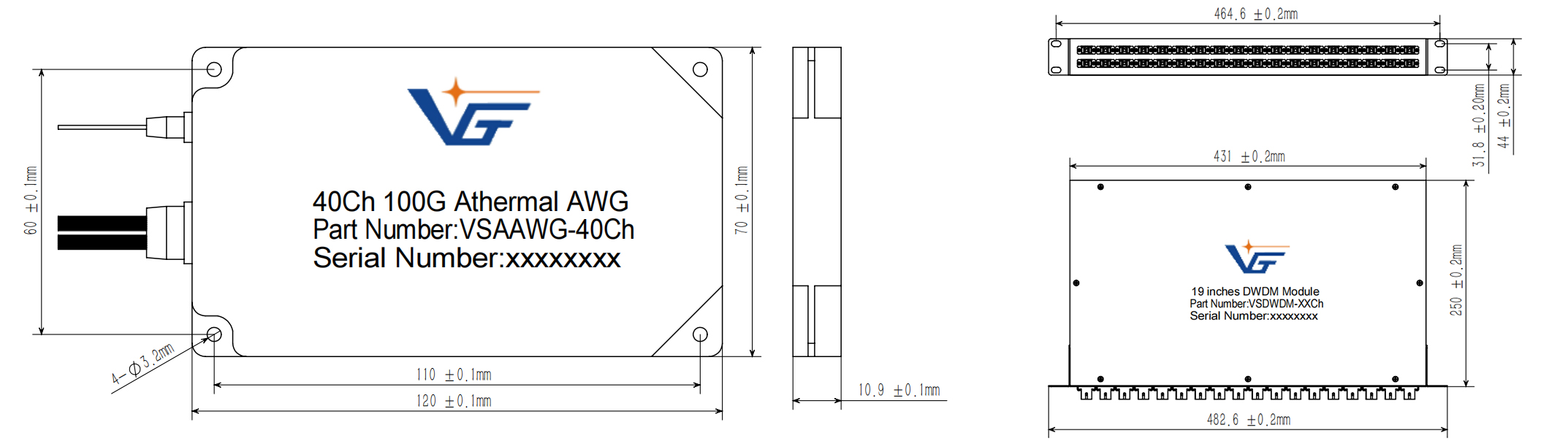

封裝方式
訂購信息
| AWG | 通道數 | 類型 | 工資波長 | 初始通道 | 特殊端 | 芯片類型 | 封裝類型 | 光線長度 | 連接頭類型 |
| A=Single Fiber | 0=50 GHz | C=C-Band | C60=C60 | M=MON | G=Gaussian | 1=120x70x10.9 | 1=0.5m | OO=None | |
| B=Dual Fiber | 1=100GHz | L=L-Band | H60=H60 | 3=1310 | F=Flat Top | 2=120x75x12.7 | 2=1.0m | FU=FC/PC | |
| X=Customized | 2=200GHz | X=Customized | C59=C59 | E=EXP | X=Customized | 3=1U 19 inch case | 3=1.5m | FA=FC/APC | |
| X=Customized | H59=C59 | X=Customized | 4=2U 19 inch case | 4=2.0m | SU=SC/PC | ||||
| ...... | X=Customized | 5=2.5m | SA=SC/APC | ||||||
| XXX=Customized | 6=3.0m | LU=LC/PC | |||||||
| X=Customized | LA=LC/APC | ||||||||
| ST=ST/UPC | |||||||||
| XX=Customized | |||||||||
